Crawlspace Science: Stack Effect, Moisture Dynamics, and Energy Loss Explained

What Is the Stack Effect and How Does It Create Crawlspace-to-Living-Space Air Exchange?

The stack effect is the primary driver of air movement between your crawlspace and your living space. Warm air is less dense than cool air, so during heating season, heated indoor air rises toward the upper levels of your home and exits through gaps in the ceiling, attic, and roof assembly. As that air escapes upward, replacement air is drawn in from the lowest available opening — your crawlspace. The crawlspace air exchange rate created by this pressure differential means your home continuously inhales from below and exhales from above.

Building science research quantifies this effect clearly. The stack effect pulls up to 40-50% of the air on a home's first floor from the crawlspace below. In unsealed crawlspaces in Kansas City and Des Moines, where summer humidity regularly reaches 75-85%, this means homeowners are breathing crawlspace air — including mold spores, allergens, and moisture — every day from May through September.

The intensity of the stack effect scales with temperature difference. During a Kansas City January, when outdoor temperatures hover near 20°F and indoor thermostats are set to 70°F, the 50-degree differential creates substantial upward pressure. Air velocity through floor penetrations — plumbing chases, electrical runs, HVAC supply boots — increases proportionally with that temperature gap. Larger temperature differences produce stronger suction at the crawlspace level.

Summer reverses the direction but not the problem. When outdoor air is warmer than conditioned indoor air, the stack effect can invert, pushing crawlspace air downward in some configurations. However, the dominant pathway in most Midwest homes remains upward infiltration because air conditioning creates negative pressure on upper floors through return duct leakage. The net result is year-round crawlspace air entering your living space through different mechanisms in different seasons. Understanding the symptoms this creates helps connect the physics to what homeowners actually experience.

How Does the Neutral Pressure Plane Determine Where Crawlspace Air Enters Your Home?

The neutral pressure plane is the elevation inside your home where indoor and outdoor air pressures are equal. Below this plane, your home is under negative pressure — actively pulling air inward from the crawlspace and any other available opening. Above this plane, your home is under positive pressure — pushing air outward through upper-level cracks, windows, and attic penetrations. In a typical two-story home with a crawlspace, the neutral pressure plane sits roughly at the midpoint of the first floor.

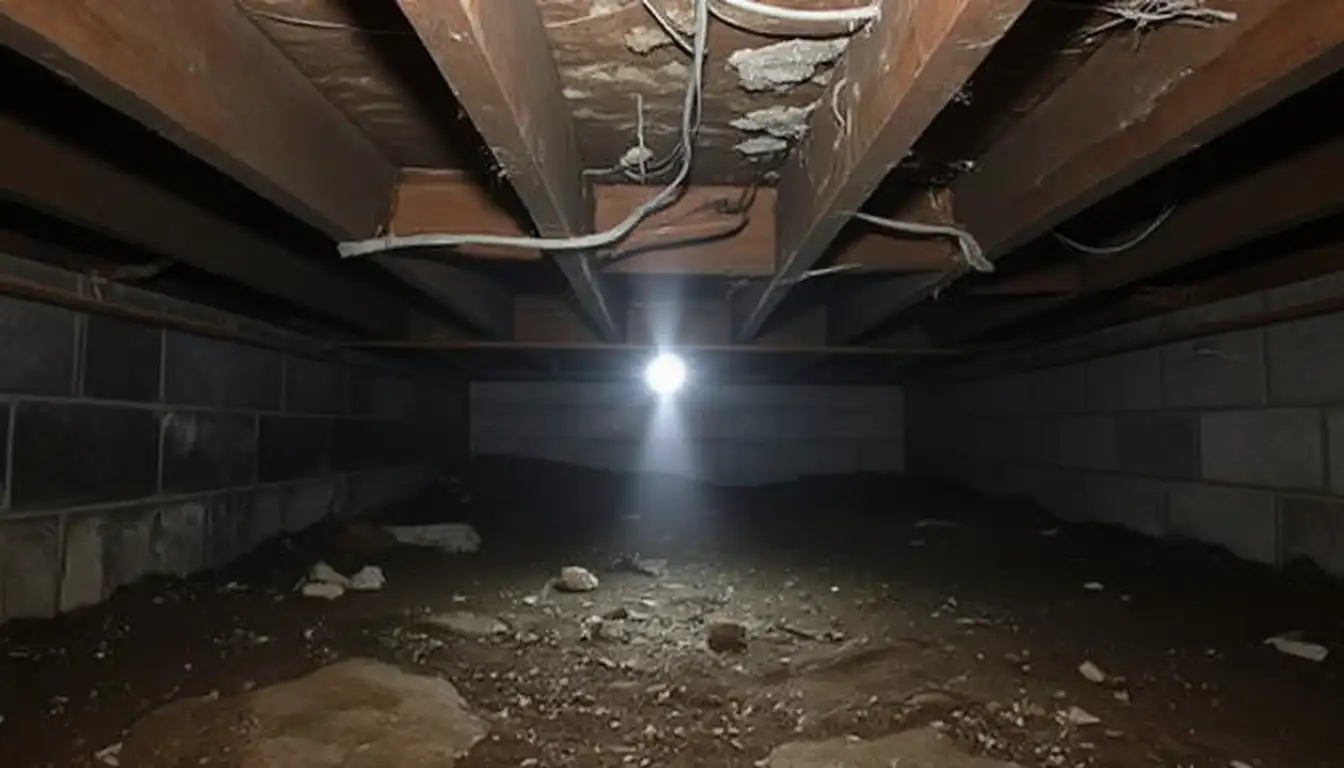

Everything below the neutral pressure plane acts as an intake zone. The crawlspace exists entirely below this plane in virtually all residential configurations. Every gap in the floor assembly — rim joist connections, plumbing penetrations, ductwork boots, electrical chases — becomes an entry point for crawlspace air. The negative pressure below the neutral plane does not require wind or mechanical systems to operate. Temperature difference alone creates the driving force, making infiltration continuous and automatic.

Sealing the building envelope air barrier at the floor level directly addresses the neutral pressure plane problem. When the floor assembly is air-sealed — rim joists spray-foamed, penetrations caulked, ductwork connections sealed — the crawlspace is effectively disconnected from the intake zone. Alternatively, encapsulating the crawlspace and bringing it inside the building envelope air barrier moves the pressure boundary to the crawlspace walls, eliminating the floor as a pressure boundary entirely. Both approaches reduce crawlspace-to-living-space air exchange by 70-90% in measured field studies.

Exhaust fans, range hoods, and dryer vents shift the neutral pressure plane downward. When these devices operate, they remove air from the living space and increase negative pressure on lower floors. The neutral pressure plane drops, expanding the intake zone and increasing the volume of crawlspace air drawn upward. Homes with powerful kitchen exhaust systems or multiple bathroom fans can experience significantly amplified crawlspace infiltration during operation. The complete crawlspace guide explains how these mechanical factors interact with natural air movement patterns.

What Are the Primary Moisture Transport Mechanisms in Residential Crawlspaces?

Four distinct moisture transport mechanisms operate simultaneously in a crawlspace environment: bulk water intrusion, capillary action, air-transported moisture, and vapor diffusion. Each mechanism moves water through different physical processes, at different rates, and requires different intervention strategies. Bulk water delivers the largest volume in the shortest time — a single rain event can introduce hundreds of gallons through foundation wall cracks or inadequate grading. Capillary action draws water upward through porous concrete and masonry, wicking moisture from saturated soil into foundation walls continuously.

Air-transported moisture accounts for the largest share of moisture transfer through the building envelope in most climates. When humid crawlspace air moves through floor penetrations via the stack effect, it carries water vapor into wall cavities and living spaces at rates 50-100 times greater than vapor diffusion through solid materials. A single one-inch-diameter hole in the subfloor can transport more moisture per day than 30 square feet of bare concrete through diffusion alone. Sealing air leaks addresses the dominant moisture transport mechanisms far more effectively than adding insulation or ventilation.

Vapor diffusion is the slowest but most persistent mechanism. Water vapor molecules move from areas of higher vapor concentration to areas of lower concentration, passing directly through permeable materials including concrete, wood, and fiberglass insulation. Vapor diffusion does not require air movement — it occurs through solid materials driven purely by the vapor pressure differential between the soil and the crawlspace air. A 6-mil polyethylene vapor barrier on the crawlspace floor reduces vapor diffusion from exposed soil by approximately 95%, making it one of the most cost-effective interventions available.

Identifying which mechanisms are active in a specific crawlspace determines which repair methods will be effective. A crawlspace with bulk water problems requires drainage solutions before vapor barriers or encapsulation will perform. A dry crawlspace with high humidity is likely experiencing vapor diffusion from exposed soil and air-transported moisture from ventilation openings. Matching the intervention to the active moisture transport mechanisms prevents ineffective repairs and wasted resources.

How Does Vapor Pressure Differential Drive Ground Moisture Into Your Crawlspace?

Vapor pressure differential is the force that moves moisture from soil through concrete and into crawlspace air without any visible water. Soil beneath a home is nearly always at or near 100% relative humidity — the ground is, by nature, a moisture reservoir. Crawlspace air, even at 70-80% relative humidity, has a lower vapor pressure than saturated soil. That difference in vapor pressure drives a continuous flow of water molecules from the ground surface upward into the crawlspace environment, day and night, regardless of season.

The rate of vapor transport depends on the magnitude of the pressure differential and the permeability of the materials between soil and crawlspace air. Bare soil presents essentially no resistance — 10 to 15 gallons of water per day can evaporate from 1,000 square feet of exposed crawlspace soil during warm months. Poured concrete slabs reduce but do not eliminate vapor transport because concrete is porous at the molecular level. Only a properly installed vapor retarder — polyethylene sheeting or a reinforced crawlspace liner — creates a meaningful resistance layer against vapor pressure differential.

Temperature amplifies the vapor pressure differential. Warmer soil produces higher vapor pressures. During a Kansas City July, when soil temperatures beneath a home reach 65-70°F and the crawlspace air is also warm, the absolute moisture content of saturated soil vapor is substantially higher than in winter months. Combined with outdoor psychrometric conditions that push ambient humidity to 75-85%, the summer months create the highest vapor pressure differentials and the greatest moisture loading on crawlspace environments.

Ground vapor does not require rainfall or groundwater contact to operate. Even in well-drained soils with no visible standing water, the natural moisture content of earth several feet below grade maintains near-100% relative humidity at the soil surface. Homes built on clay-heavy soils — common across Kansas City and central Iowa — retain even more moisture at shallow depths because clay particles hold water tenaciously. The vapor pressure differential between this perpetually moist soil and the crawlspace air above it never stops driving moisture upward.

Why Do Vented Crawlspaces Fail in Humid Midwest Climates?

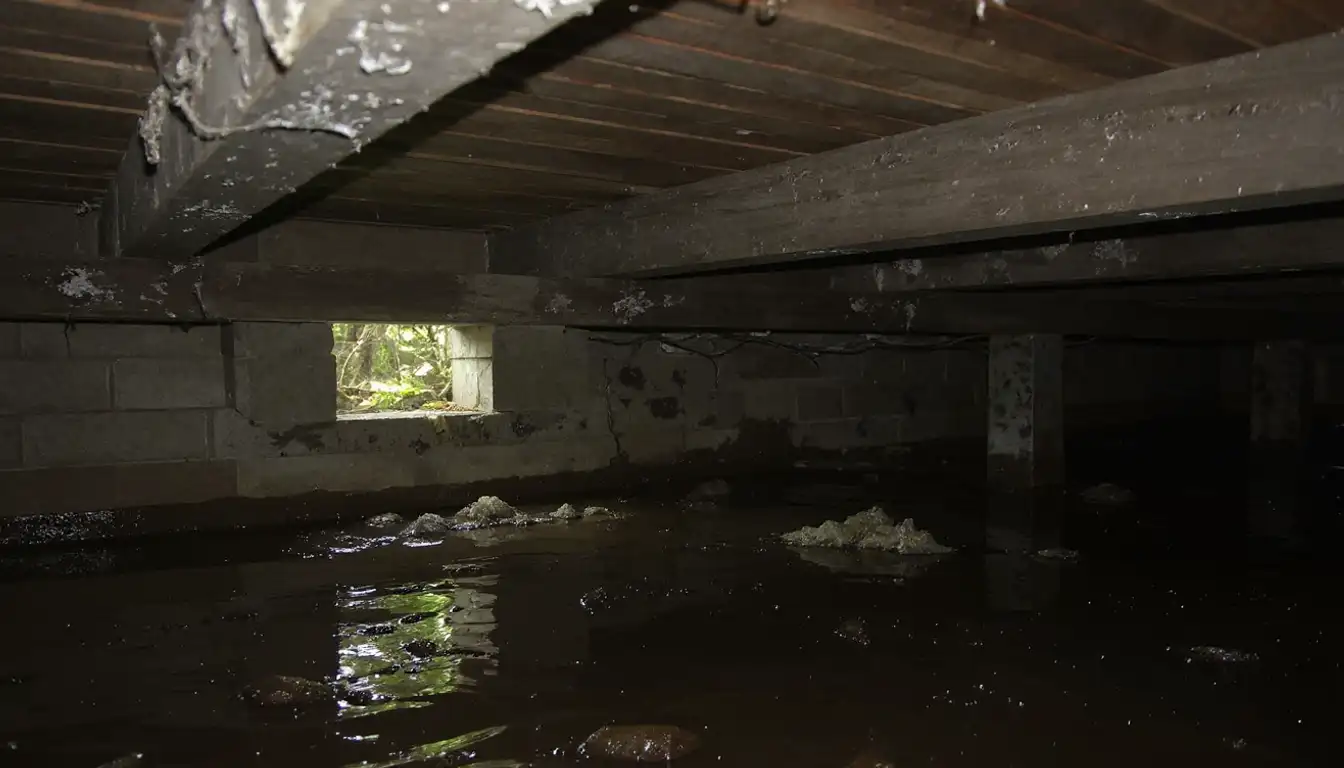

Vented crawlspace design assumes that outdoor air will dilute and remove moisture, but this assumption fails catastrophically in climates with high summer humidity. The original building code rationale for foundation vents was straightforward: allow air circulation to carry moisture out of the crawlspace. In arid climates, this works reasonably well. In Kansas City and Des Moines, where outdoor dew point temperature regularly exceeds 65°F from June through August, venting introduces more moisture than it removes.

The problem is thermodynamic, not mechanical. When 85°F outdoor air at 80% relative humidity enters a crawlspace where surfaces are 65-70°F, that air cools rapidly. Cooler air holds less moisture at saturation, so relative humidity rises as the temperature drops. By the time outdoor air reaches the center of a crawlspace and contacts cool foundation walls, floor joists, and ductwork, it can reach 95-100% relative humidity — producing condensation on every surface below the dew point temperature. Venting does not dry the crawlspace; it actively wets it.

Mold growth begins within 24 to 48 hours when relative humidity exceeds 60 percent. In an Advanced Energy study, sealed crawlspaces maintained average humidity of 52 percent compared to 77 percent in vented crawlspaces — the difference between a mold-free environment and guaranteed mold colonization.

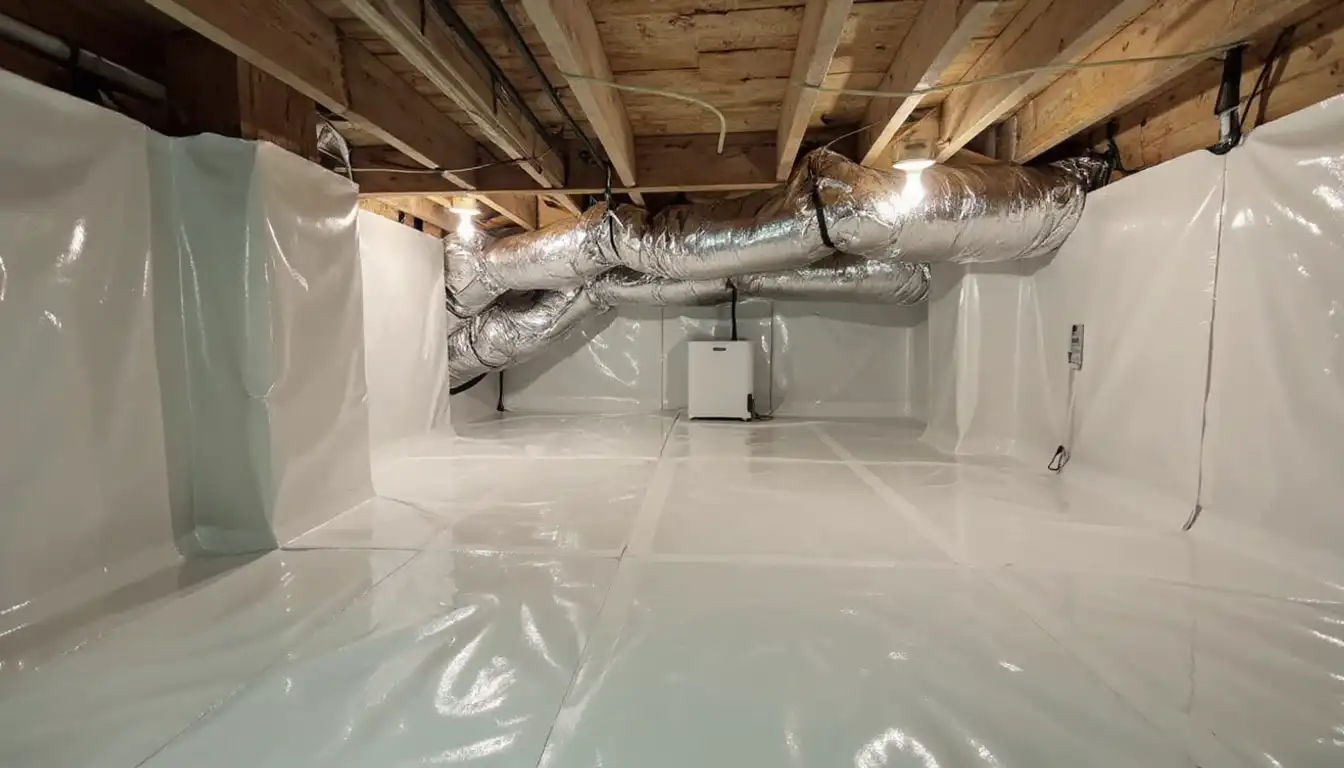

The International Residential Code now permits sealed crawlspaces as an alternative to vented construction, reflecting decades of field data showing the superiority of sealed designs. IRC Section R408.3 outlines the requirements: continuous vapor retarder, mechanical ventilation or conditioned air supply, and a sealed perimeter. Builders and code officials in both Kansas City and Des Moines jurisdictions accept sealed crawlspace designs, though many older homes in both markets were built under earlier codes requiring foundation vents.

Closing the vents without addressing the complete system creates new problems. Simply blocking foundation vents in an existing vented crawlspace traps ground moisture with no exit path, potentially making conditions worse. Effective conversion from vented to sealed requires a full building envelope air barrier approach — vapor retarder on the floor and walls, sealed vents, and either mechanical dehumidification or a conditioned air supply. The methods page details the specific steps and sequences involved in this conversion.

What Did the Advanced Energy Sealed Crawlspace Study Measure?

The Advanced Energy sealed crawlspace field study remains the most comprehensive controlled comparison of vented and sealed crawlspace performance in residential buildings. Conducted across approximately 100 homes in the southeastern United States, the study monitored temperature, relative humidity, energy consumption, moisture levels in wood framing, and indoor air quality over multiple years. Homes were divided into groups with different crawlspace configurations — traditional vented, sealed with dehumidification, and sealed with conditioned air supply — and instrumented with continuous data loggers.

Humidity results showed a stark separation between vented and sealed groups. Sealed crawlspaces consistently maintained relative humidity near 52% year-round, remaining well below the 60% threshold for mold growth. Vented crawlspaces averaged 77% relative humidity, spending the majority of warm-season hours above the mold threshold. Wood moisture content in sealed crawlspaces stabilized between 10-14%, while vented crawlspace framing members frequently exceeded 19% — the level at which decay fungi become active.

Energy measurements confirmed the Department of Energy's projections. Homes with sealed crawlspaces demonstrated 10-30% reductions in heating and cooling energy consumption compared to identical homes with vented crawlspaces. The improvement came from two sources: eliminating the thermal penalty of introducing unconditioned outdoor air through foundation vents, and reducing duct leakage losses by placing ductwork inside the conditioned boundary. The average home in the study had over 300 CFM of duct leakage — air that was being heated or cooled and then lost to the crawlspace environment.

Indoor air quality improved measurably in sealed crawlspace homes. Airborne mold spore counts in living spaces dropped significantly when crawlspaces were sealed, consistent with the stack effect delivering cleaner air from a controlled below-grade environment. Radon levels also decreased in sealed crawlspaces with mechanical ventilation because the controlled air exchange provided a predictable dilution path. These findings have influenced both the IRC code changes permitting sealed crawlspaces and the DOE's recommendations for foundation treatment in energy efficiency programs.

How Does Crawlspace Moisture Affect HVAC System Performance and Duct Leakage?

HVAC ductwork in crawlspaces creates a direct thermal and moisture connection between your mechanical system and the crawlspace environment. In most Midwest homes built before 2000, the air handler, supply trunk lines, and branch ducts are located in the crawlspace. Every joint, seam, and boot connection is a potential leak point. The Advanced Energy study measured average duct leakage exceeding 300 CFM in crawlspace installations — equivalent to leaving a window open year-round while your heating and cooling system runs.

Duct leakage in a vented crawlspace wastes conditioned air to the outdoors. When supply ducts leak heated air into a vented crawlspace during winter, that air exits through foundation vents and is completely lost. The HVAC system must generate replacement air, increasing runtime and energy consumption proportionally. A 300 CFM leak on a system moving 1,200 CFM total means 25% of your conditioned air never reaches your living space. Sealing the crawlspace converts this loss into a benefit — leaked air stays within the conditioned boundary and contributes to crawlspace temperature stability.

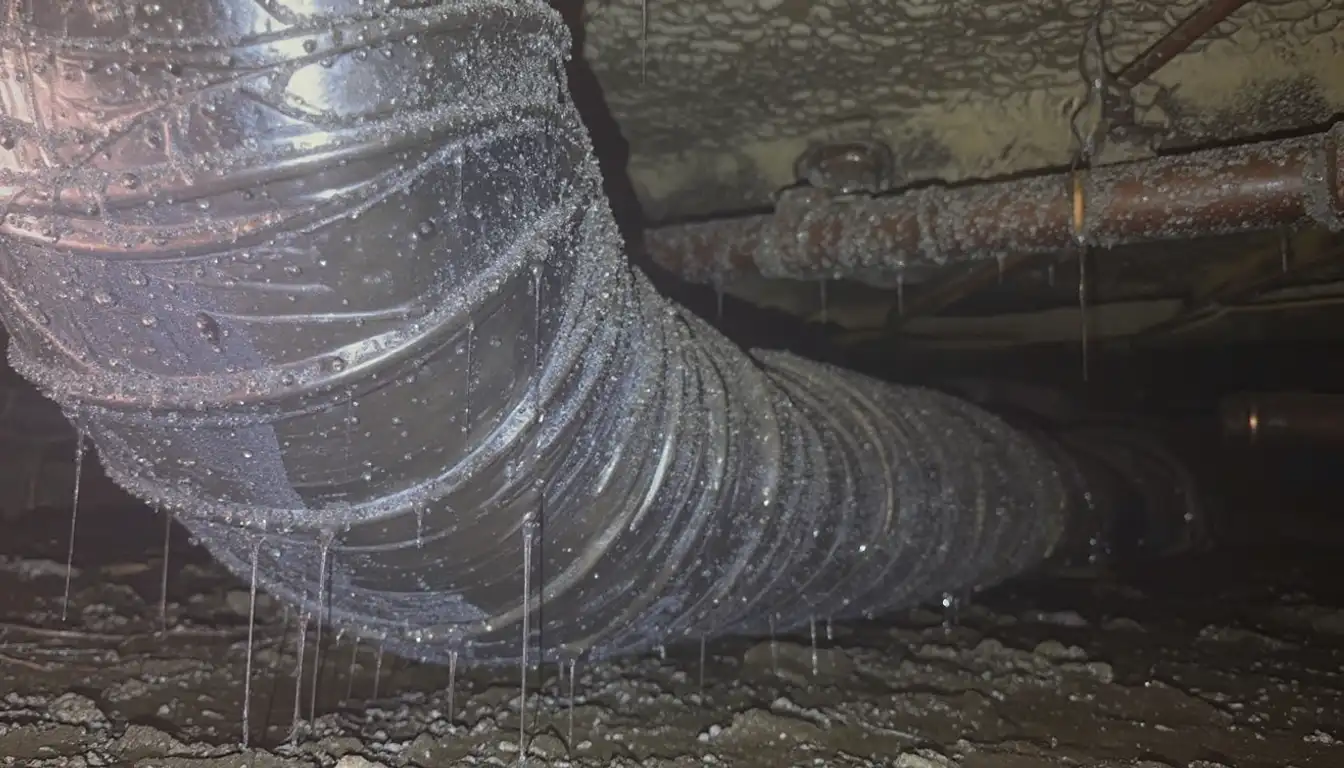

Moisture on duct surfaces creates condensation and biological growth. When cold supply ducts carrying 55°F air pass through a crawlspace at 75°F and 80% relative humidity, the duct surface temperature drops below the dew point temperature of the surrounding air. Water condenses on the outside of the ductwork, drips onto insulation and framing below, and creates sustained wet conditions ideal for mold colonization. The exterior surface of flex duct insulation jackets becomes a growth medium, and the insulation itself absorbs water and loses thermal performance.

Return duct leakage is even more consequential for indoor air quality. When return ducts in a crawlspace leak, they pull crawlspace air directly into the HVAC system and distribute it to every room in the home. Return leakage bypasses the stack effect entirely — it mechanically transports crawlspace air, including mold spores, moisture, and soil gases, into your ductwork and then blows it through every supply register. The connection between crawlspace conditions and living space symptoms is most direct when return duct leakage is present in an unconditioned crawlspace.

What Role Does Dew Point Temperature Play in Crawlspace Condensation?

Dew point temperature is the single most useful metric for predicting condensation in a crawlspace. Unlike relative humidity, which changes with temperature, dew point is an absolute measure of the moisture content in air. When any surface in the crawlspace drops to or below the dew point temperature of the surrounding air, water condenses on that surface. Foundation walls, metal ductwork, cold water pipes, and the soil surface itself are all common condensation targets because their temperatures are governed by ground contact rather than air temperature.

A crawlspace condensation event requires no rain, flooding, or plumbing leak. On a July day in Kansas City when outdoor air has a dew point of 72°F and the crawlspace foundation wall is 62°F from ground contact, condensation forms on the wall surface continuously. Ventilation makes this worse — every cubic foot of outdoor air introduced through foundation vents carries that 72°F dew point into contact with 62°F surfaces. The condensation rate is proportional to the difference between the air dew point and the surface temperature, and to the volume of air flowing past the cold surface.

Dew point temperature explains why crawlspaces get wet in summer, not winter. Winter air in Kansas City carries dew points near 15-25°F — well below the temperature of any crawlspace surface. Condensation is essentially impossible in winter conditions. Summer air dew points of 65-75°F routinely exceed crawlspace surface temperatures, making condensation frequent from May through September. Homeowners who discover mold or moisture accumulation in summer are observing the predictable result of psychrometric conditions, not a sudden new problem.

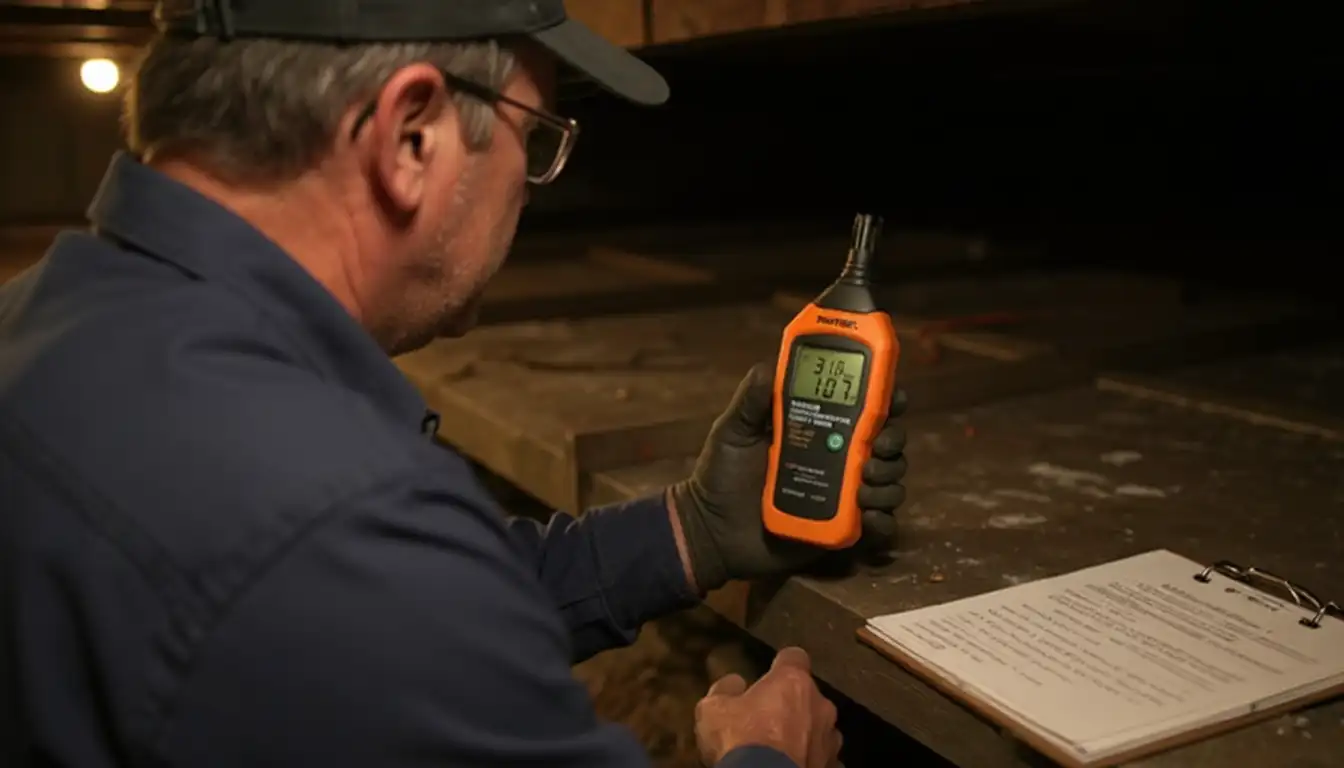

Monitoring dew point inside the crawlspace provides early warning of condensation risk. A simple temperature and humidity sensor can calculate dew point, and when crawlspace air dew point approaches the temperature of the coldest surface (usually the foundation wall or cold water pipe), condensation is imminent. Maintaining crawlspace air below 55% relative humidity at typical crawlspace temperatures keeps the dew point well below surface temperatures and prevents condensation entirely. The cost analysis page covers the economics of dehumidification systems that maintain these conditions.

How Do Kansas City and Des Moines Psychrometric Conditions Create Unique Crawlspace Challenges?

Kansas City and Des Moines occupy a climate zone that combines high summer humidity with deep winter frost penetration — a combination that stresses crawlspace systems in both directions. Summer outdoor relative humidity routinely reaches 75-85% in both markets, with sustained dew points above 70°F for weeks at a time from June through August. Winter brings frost depths of 36 inches in Kansas City and 42 inches in Des Moines, creating freeze-thaw cycling that affects foundation walls, moisture migration patterns, and soil behavior around the foundation perimeter.

The psychrometric conditions in these markets make vented crawlspaces particularly ineffective. When outdoor air at 88°F and 78% relative humidity enters a crawlspace where the floor slab and foundation walls are 64°F, the incoming air cools rapidly. At 64°F, that air reaches 100% relative humidity and deposits liquid water on every surface at or below that temperature. A vented crawlspace in Kansas City during July is not being dried by ventilation — it is being actively wetted by every breeze that passes through the foundation vents.

Winter conditions create a different but equally significant moisture challenge. When outdoor temperatures drop below freezing, the soil around the foundation perimeter contracts and creates micro-gaps between the foundation wall and backfill. Spring thaw saturates these gaps with snowmelt, and hydrostatic pressure pushes water against the foundation at precisely the time when freeze-thaw has created new entry pathways. The deeper frost penetration in Des Moines extends this cycle later into spring and makes it more severe than in Kansas City, where the shallower frost depth produces less foundation wall stress.

Clay-dominant soils in both markets amplify seasonal moisture swings. Kansas City sits on Missouri River basin clay that expands when wet and shrinks when dry, creating seasonal foundation movement and perimeter drainage challenges. Des Moines soils include glacial till with high clay content that holds moisture at the surface and resists drainage. Both soil types maintain near-100% relative humidity at shallow depths year-round, sustaining the vapor pressure differential that drives ground moisture into crawlspaces regardless of rainfall or irrigation.

Effective crawlspace management in these climates requires year-round control. A system designed only for summer dehumidification will not address winter air infiltration and floor-level heat loss. A system designed only for winter thermal performance will not prevent summer condensation and mold growth. The combination of sealed perimeter walls, continuous vapor retarder, insulation appropriate to the frost depth, and mechanical dehumidification addresses both seasonal extremes. Regional crawlspace improvement strategies must account for the full annual range of psychrometric conditions rather than optimizing for a single season.
