Crawlspace Encapsulation: The Complete Process, Components, and What to Expect

What Is Crawlspace Encapsulation and How Does It Work as a Complete System?

Crawlspace encapsulation is the process of sealing a crawlspace from all external moisture and air sources and then actively controlling the interior environment. The goal is to move the crawlspace from outside the building envelope to inside it — treating the space beneath your home the same way you treat a basement or conditioned room. When complete, an encapsulated crawlspace maintains stable temperature and humidity year-round, regardless of what outdoor conditions are doing above grade or what the soil is doing below.

The system works by addressing every moisture pathway simultaneously. Ground moisture is blocked by a reinforced polyethylene vapor barrier covering the entire floor and extending up the foundation walls. Outdoor air infiltration is eliminated by sealing all foundation vents and penetrations. Thermal transfer through walls and rim joists is reduced by insulation. And any residual moisture that enters the sealed space — from concrete diffusion, minor air leakage, or occupant activity — is removed by a commercial-grade dehumidifier. No single component accomplishes the job alone. The crawlspace science page explains the physics behind why each moisture pathway requires its own intervention.

The distinction between encapsulation and partial measures matters enormously. Installing a vapor barrier on the floor without sealing the vents still allows humid outdoor air to enter and condense on cool surfaces. Sealing the vents without installing a vapor barrier traps ground moisture with no exit path. Adding a dehumidifier to a space with open vents forces the unit to dehumidify the entire outdoor atmosphere — an impossible and expensive task. Encapsulation component integration means each element depends on the others to function correctly.

What Are the Essential Components of a Reinforced Polyethylene Vapor Barrier System?

The vapor barrier is the foundation of any encapsulation system, and the material specification matters more than most homeowners realize. Professional-grade crawlspace vapor barriers are manufactured from reinforced polyethylene in thicknesses ranging from 12 to 20 mil, with a woven reinforcement layer sandwiched between polyethylene films. This multi-layer moisture barrier installation creates a material that resists puncture, tearing, and degradation from UV exposure, soil chemicals, and microbial activity. Thin 6-mil sheeting sold at hardware stores — the type used under concrete pours — lacks the puncture resistance and longevity required for exposed crawlspace installation where workers, plumbers, and electricians will periodically access the space.

Coverage must be complete and continuous to be effective. The vapor barrier extends across the entire crawlspace floor, up the foundation walls to the sill plate, and around all piers, columns, and penetrations. Seams between adjacent sheets overlap by a minimum of six inches and are sealed with specialty seaming tape designed for polyethylene adhesion — standard duct tape or construction tape will fail within months. The wall termination is mechanically fastened to the foundation wall with termination bars or concrete fasteners and sealed with polyurethane caulk to prevent moisture from wicking behind the barrier.

Penetrations are the weak points in any vapor barrier system. Every pier, support column, plumbing pipe, and electrical conduit that passes through the barrier requires individual sealing. The barrier is cut to fit tightly around each penetration and sealed with compatible tape or mastic. Missing or poorly sealed penetrations allow ground moisture to bypass the barrier entirely — a single unsealed pier in the center of a crawlspace can emit enough moisture to raise humidity levels across the entire space. The vapor barrier details page covers material specifications, permeance ratings, and installation standards in greater depth.

The vapor barrier also serves as a cleanliness layer. Once the floor is covered with a clean, white reinforced liner, the crawlspace becomes inspectable — moisture intrusion, pest activity, and plumbing leaks become immediately visible against the light-colored surface. Technicians can move through the space without contacting soil.

Why Is Crawlspace Vent Sealing a Critical Step in the Encapsulation Process?

Open foundation vents are the single largest source of uncontrolled moisture entry in most crawlspaces during warm months. In Kansas City and Des Moines, where summer outdoor relative humidity regularly reaches 75 to 85 percent, every open vent allows hundreds of cubic feet per hour of moisture-laden air to enter the crawlspace. When that warm, humid air contacts cool foundation walls and floor joists — surfaces that remain at ground-coupled temperatures of 60 to 68 degrees — it rapidly approaches its dew point and begins depositing condensation on every surface below the dew point temperature. Crawlspace vent sealing methodology stops this cycle at its source.

The physics behind vent sealing are straightforward but widely misunderstood. For decades, building codes required foundation vents based on the assumption that air circulation would remove moisture. That assumption is correct in arid climates but fails where outdoor dew points regularly exceed crawlspace surface temperatures. The Advanced Energy study demonstrated this conclusively — vented crawlspaces averaged 77 percent relative humidity while sealed crawlspaces maintained 52 percent. The IRC now permits sealed crawlspace construction as an alternative, recognizing the field data. The crawlspace science page covers the full thermodynamics.

Professional vent sealing uses rigid foam board cut to fit each vent opening, adhered with construction adhesive and sealed at all edges with polyurethane caulk or spray foam. The seal must be airtight — even small gaps around vent covers allow enough air exchange to compromise humidity control in the sealed space. Some installations use custom-fabricated sheet metal covers with gasket seals for a more finished appearance. Rim joist areas adjacent to foundation vents receive the same air-sealing treatment, as the rim joist band is often the largest single source of air leakage in the crawlspace perimeter.

Vent sealing without the remaining encapsulation components creates problems rather than solving them. Closing the vents traps whatever moisture is currently in the space — ground vapor, residual humidity, plumbing condensation — with no mechanism for removal. Sealed crawlspace moisture management requires active humidity control from a dehumidifier or conditioned air supply. The sealed perimeter defines the boundary; the dehumidifier maintains the conditions within that boundary. Neither works without the other.

How Does Wall and Rim Joist Insulation Complete the Thermal Envelope?

Insulating the crawlspace walls and rim joists is what converts an encapsulated crawlspace into a true conditioned space within the thermal envelope of the home. Without insulation, the foundation walls remain at ground temperature — approximately 55 degrees in winter in Kansas City and Des Moines — and act as a massive heat sink that draws energy out of the conditioned space above. The rim joist, where the floor framing meets the top of the foundation wall, is typically the least insulated and most air-leaky component in the entire building envelope. Addressing both surfaces completes the thermal boundary.

Rigid foam board insulation is the standard material for crawlspace wall applications. Extruded polystyrene (XPS) or polyisocyanurate boards in thicknesses of 1.5 to 2 inches provide R-7.5 to R-13 thermal resistance while simultaneously acting as a vapor retarder. The boards are adhered directly to the foundation wall with compatible adhesive and mechanically fastened. The insulation extends from the top of the foundation wall down to the floor or to at least two feet below exterior grade, depending on climate zone requirements.

Rim joist insulation is equally important and often more impactful per square foot. Closed-cell spray foam applied at 2 to 3 inches provides both insulation (R-12 to R-18) and a complete air seal in a single application. The spray foam conforms to the irregular geometry of the rim joist area, filling gaps around sill plates and band joists that rigid board cannot easily address. This air sealing function is at least as valuable as the thermal resistance for crawlspace-to-living-space pressure equalization.

Wall insulation changes the condensation dynamics of the entire crawlspace. An uninsulated foundation wall in summer is a condensation target — its cool surface attracts moisture from warm crawlspace air. Adding insulation raises the interior surface temperature above the dew point, eliminating wall condensation. This is why insulation and dehumidification work together: insulation prevents surface condensation while the dehumidifier controls airborne humidity. Homeowners who notice mold growth on foundation walls are often observing the result of missing insulation on surfaces that chronically operate below the dew point.

What Role Does Dehumidification Play in a Sealed Crawlspace Environment?

A dehumidifier is the active control mechanism that maintains target humidity levels inside a sealed crawlspace after passive measures — vapor barrier, sealed vents, insulation — have reduced the moisture load as far as they can. No encapsulation system is perfectly airtight. Minor air leakage through penetrations, vapor diffusion through concrete walls, and seasonal fluctuations in groundwater levels all introduce moisture that accumulates in a sealed space without mechanical removal. The dehumidifier target is below 55 percent relative humidity — safely below the 60 percent threshold where mold growth becomes possible.

Crawlspace dehumidifiers are purpose-built units that differ significantly from residential portable dehumidifiers. Commercial crawlspace units are designed for low-clearance horizontal mounting, operate efficiently at the cooler temperatures found in below-grade spaces (where residential portables lose capacity), and include automatic condensate drainage via gravity or pump rather than requiring manual tank emptying. Units are sized by moisture removal capacity — measured in pints per day — matched to the crawlspace volume, local climate conditions, and the tightness of the encapsulation system. The dehumidification methods page covers sizing calculations, performance specifications, and placement strategies in detail.

Conditioned crawlspace air exchange is an alternative to standalone dehumidification in some configurations. The IRC permits sealed crawlspaces to receive conditioned air from the home's HVAC system, provided the supply volume meets code-specified minimums — typically one CFM per 50 square feet of crawlspace floor area. This maintains positive pressure in the crawlspace relative to the exterior, discouraging air infiltration through any remaining leakage points.

In Midwest climates, a dedicated dehumidifier is the more reliable approach. HVAC supply works during cooling season but during spring and fall shoulder seasons — when outdoor humidity is high but temperatures do not trigger cooling — the system may not run enough to control crawlspace humidity. A standalone dehumidifier with a built-in humidistat operates on demand whenever humidity rises above the setpoint, regardless of HVAC activity.

What Does the Step-by-Step Encapsulation Installation Process Look Like?

A professional encapsulation installation follows a specific sequence because each step depends on the one before it. Most residential encapsulation projects take one to three days for an experienced crew, depending on crawlspace size, accessibility, and whether structural or drainage work is required before the encapsulation components are installed.

The process begins with inspection and preparation. The crew assesses crawlspace conditions — standing water, drainage patterns, structural damage, existing insulation, pest evidence, and debris. All loose debris, old fiberglass insulation, and deteriorated vapor barriers are removed. If the crawlspace has standing water or evidence of active water intrusion, drainage must be addressed before proceeding.

If standing water is present in your crawlspace, a drainage system and sump pump must be installed before encapsulation. An interior French drain system channels water to a sump basin where a pump removes it from the space. Encapsulating over standing water traps the moisture source beneath the vapor barrier, defeating the purpose of the system entirely.

Structural damage is addressed next. Damaged floor joists are sistered or replaced, deteriorated sill plates are repaired, and any wood rot is cut out and reinforced. This is the last opportunity to address framing issues before the vapor barrier covers the floor and wall surfaces. Homeowners experiencing sagging or uneven floors should expect structural repair as part of the encapsulation scope.

Vent sealing and perimeter air sealing establish the boundary. All exterior vents are sealed with rigid foam board, construction adhesive, and caulk. Gaps around plumbing and electrical penetrations through the foundation wall are filled with spray foam. The rim joist areas are air-sealed and insulated, typically with closed-cell spray foam, establishing the air boundary that separates the crawlspace from the outdoor environment.

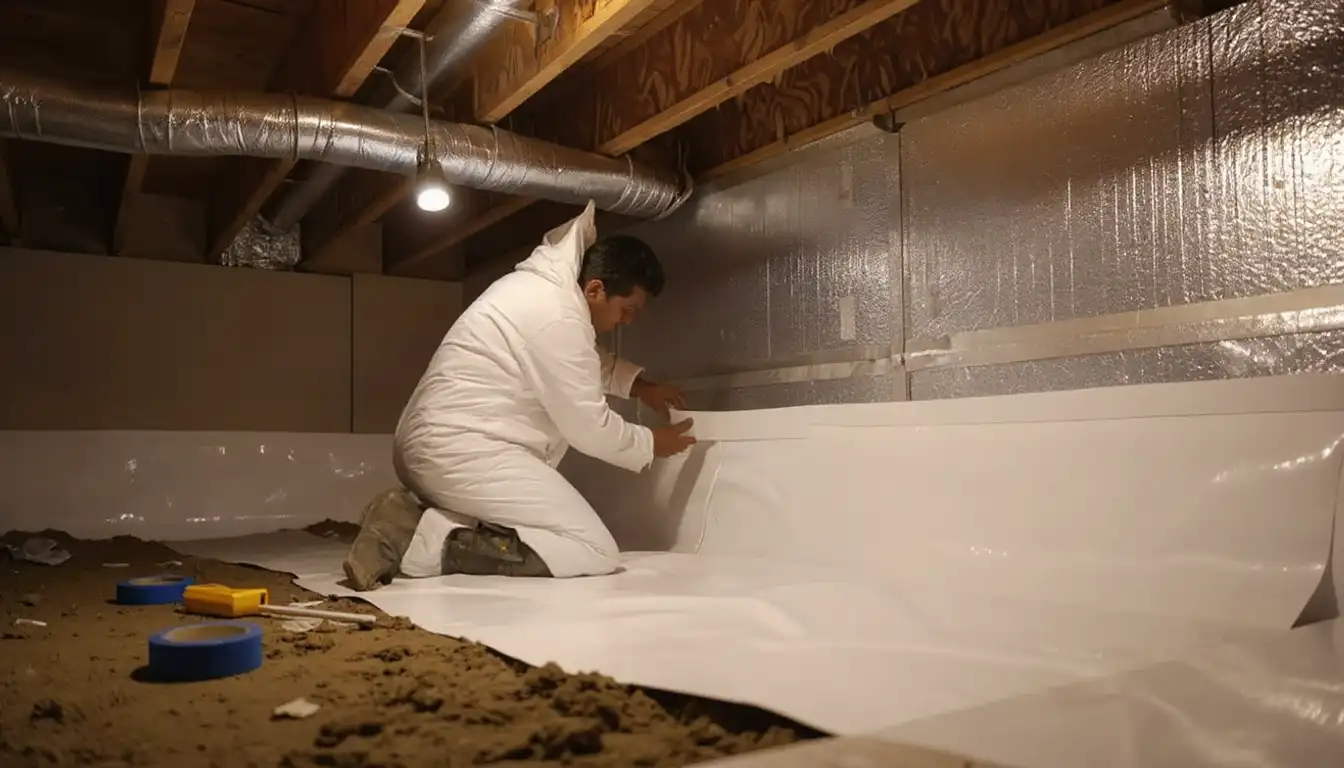

Vapor barrier installation is the most labor-intensive step. The 12 to 20 mil reinforced polyethylene liner is laid across the entire floor, fitted around piers and columns, and extended up the foundation walls to the sill plate. Seams are overlapped six inches minimum and sealed with specialty tape. Wall terminations are mechanically fastened and caulked. Every penetration through the barrier is individually sealed.

The final steps are wall insulation and dehumidifier commissioning. Rigid foam board is adhered to foundation wall surfaces and sealed at joints and edges. The dehumidifier is positioned centrally, connected to power, and plumbed for automatic condensate drainage with the humidistat set to maintain relative humidity below 55 percent. After commissioning, the crew documents baseline humidity and temperature readings for future reference. The system is now operational, and conditioned crawlspace air exchange begins immediately.

What Maintenance Does an Encapsulated Crawlspace Require Over Time?

An encapsulated crawlspace is not a set-and-forget installation, but its maintenance requirements are minimal compared to the ongoing problems of an untreated crawlspace. A properly installed system with commercial-grade materials has a service life of 15 to 25 years or more, with the dehumidifier being the component most likely to need attention during that period. Establishing an encapsulation maintenance inspection schedule ensures the system continues performing at its designed capacity across its full lifespan.

Annual visual inspection is the cornerstone of encapsulation maintenance. Once per year — ideally in late spring before summer humidity peaks — enter the crawlspace and walk the entire perimeter. Check the vapor barrier for tears, displaced sections, or areas where the material has pulled away from walls or piers. Inspect seam tape for adhesion failure. Look for standing water on top of the vapor barrier, which indicates a new water intrusion source that was not present during installation. Verify that vent seals are intact and that no new penetrations have been made through the barrier or wall insulation by service technicians.

The dehumidifier requires the most regular attention. Check the condensate drainage line quarterly to ensure it is flowing freely and not clogged with sediment or biological growth. Clean or replace the air filter according to the manufacturer's schedule — typically every six to twelve months depending on conditions. Monitor the unit's runtime and humidity readings; a sudden increase in runtime without a change in outdoor conditions suggests a new air leak or moisture source has developed. Commercial crawlspace dehumidifiers typically need replacement or major service every 8 to 12 years depending on runtime hours and operating conditions.

Service technician access is the most common source of post-installation damage. Plumbers, electricians, and HVAC technicians entering for unrelated work may tear the vapor barrier or leave penetrations unsealed. Communicate to all service providers that the crawlspace is encapsulated and that any barrier material they disturb must be resealed. Keep extra seaming tape and compatible caulk near the crawlspace access point for quick repairs.

Monitoring technology makes ongoing maintenance easier. A wireless temperature and humidity sensor connected to a smartphone app provides continuous visibility without requiring physical entry. Set alerts for humidity above 55 percent or temperature anomalies that could indicate dehumidifier malfunction. This converts the encapsulation maintenance inspection schedule from a calendar-based task to a condition-based response. Homeowners who notice musty odors returning after encapsulation should check their monitoring data first — it often points directly to the source.

Frequently Asked Questions About Crawlspace Encapsulation

How long does crawlspace encapsulation take?

Most residential crawlspace encapsulation projects take one to three days for a professional crew, depending on crawlspace size, accessibility, and whether structural repairs or drainage work is needed before the encapsulation components are installed.

Does encapsulation require a dehumidifier?

In Midwest climates where summer humidity regularly reaches 75 to 85 percent, a dehumidifier is critical. Sealing the space without active humidity control can trap existing moisture. A properly sized dehumidifier maintains relative humidity below 55 percent year-round. See the dehumidification page for sizing details.

Can you encapsulate a crawlspace with standing water?

Standing water must be addressed before encapsulation. A drainage system and sump pump need to be installed first to manage water intrusion. Encapsulating over standing water traps the moisture source beneath the vapor barrier, which defeats the purpose of the system.

How long does crawlspace encapsulation last?

A properly installed encapsulation system with commercial-grade materials typically lasts 15 to 25 years or more. The vapor barrier is the most durable component. The dehumidifier may need replacement or servicing every 8 to 12 years depending on runtime and conditions.

What is the difference between encapsulation and a vapor barrier?

A vapor barrier is one component — polyethylene sheeting laid over exposed soil to reduce ground moisture transmission. Full encapsulation is a complete system that includes the vapor barrier plus sealed vents, wall or rim joist insulation, air sealing at all penetrations, and a dehumidifier. The difference is addressing one moisture pathway versus addressing all of them simultaneously. Our encapsulation vs. vapor barrier comparison covers the specific performance differences and when each approach is appropriate.

How much does crawlspace encapsulation cost?

Encapsulation costs vary based on crawlspace size, condition, and which components are needed. Our comprehensive cost guide covers the full range of pricing, component costs, energy savings payback, and tax credit eligibility.
