Crawlspace Vapor Barriers: Types, Thickness, and Installation Standards

What Is a Crawlspace Vapor Barrier and How Does It Block Ground Moisture Transmission?

A crawlspace vapor barrier is a sheet of polyethylene plastic laid directly over exposed soil to reduce the rate of ground moisture transmission into the crawlspace air above. Exposed soil in a crawlspace continuously releases water vapor through evaporation. Research measurements show that 1,000 square feet of uncovered crawlspace soil can release 10 to 15 gallons of water vapor per day into the space above, depending on soil moisture content, groundwater depth, and temperature. That moisture enters the crawlspace air, raises relative humidity, and creates conditions that promote mold growth, wood decay, and condensation on cool surfaces.

The barrier works by creating a physical separation between the wet soil surface and the crawlspace air column. Water vapor molecules in the soil attempt to move upward toward the drier air above — a process driven by vapor pressure differentials between the moist ground and the crawlspace atmosphere. The polyethylene sheeting interrupts this pathway by presenting a material with very low moisture vapor transmission rate. Instead of evaporating freely into the crawlspace, moisture is trapped beneath the barrier where it either drains laterally toward the foundation perimeter or remains in the soil.

Ground moisture is only one of several moisture sources active in a crawlspace environment. In addition to soil evaporation, crawlspaces receive moisture from outdoor air entering through foundation vents, from bulk water intrusion through foundation walls and footings, and from condensation that forms when warm humid air contacts cool surfaces. A vapor barrier addresses the ground moisture pathway specifically. It does not control moisture that enters through vents, infiltrates through walls, or condenses on ductwork and joists. Understanding this distinction is essential for evaluating whether a vapor barrier alone is sufficient for a given crawlspace or whether additional moisture management is required.

The effectiveness of any crawlspace ground cover specification depends on material quality, installation completeness, and seam integrity. A vapor barrier with gaps, tears, or unsealed seams allows ground moisture to bypass the barrier through the openings. Even small unsealed areas around piers, plumbing penetrations, or sheet overlaps create concentrated moisture pathways that can deliver significant vapor into the crawlspace. The crawlspace science page explains the broader moisture dynamics that determine which combination of interventions a particular crawlspace needs.

How Does Mil Thickness Affect Vapor Barrier Performance and Permeance Rating?

Mil thickness is the primary specification that determines a vapor barrier's durability, puncture resistance, and moisture blocking ability. One mil equals one-thousandth of an inch. Crawlspace vapor barriers range from 6-mil basic polyethylene sheeting to 20-mil reinforced products designed for heavy-duty crawlspace ground cover applications. The IRC (International Residential Code) requires a minimum 6-mil polyethylene ground cover in crawlspaces, but building science professionals and material manufacturers consistently recommend thicker options for crawlspace installations where the barrier must withstand foot traffic, resist punctures from soil debris, and maintain integrity around structural penetrations.

Permeance rating measures how much moisture vapor passes through a material, and lower permeance means better moisture blocking. Permeance is measured in perms — one perm equals one grain of water vapor passing through one square foot of material per hour under a specific vapor pressure differential. A Class I vapor retarder has a permeance rating of 0.1 perms or less. Standard 6-mil polyethylene typically rates between 0.06 and 0.08 perms, which qualifies as Class I. Thicker reinforced products in the 10 to 20-mil range often achieve permeance ratings below 0.05 perms, providing measurably lower moisture vapor transmission rates through the barrier material itself.

Reinforced polyethylene sheeting adds a woven scrim layer between polyethylene films for structural integrity. Standard 6-mil poly is a single layer of unreinforced plastic that tears easily when snagged on a rock, stepped on during an inspection, or pulled around a pier base. Reinforced products sandwich a polyester or polypropylene scrim between two polyethylene layers, creating a composite material that resists tearing and puncturing far better than its unreinforced equivalent. This construction matters in crawlspaces because any tear or puncture becomes a concentrated moisture pathway that bypasses the barrier's intended function.

The practical difference between 6-mil and 20-mil barriers shows up most clearly during installation and over the barrier's service life. A 6-mil sheet can tear during installation when dragged across rough soil or pulled around pier bases. Over time, it degrades from UV exposure if any light enters the crawlspace, becomes brittle in cold temperatures, and punctures under the weight of an inspector crawling across it. A 20-mil reinforced barrier withstands these stresses with minimal damage, maintains its moisture vapor transmission rate over a longer service life, and provides a more durable crawlspace ground cover specification. The thicker material costs more per square foot, but the performance and longevity difference is substantial.

Material selection should match the intended use and the crawlspace access requirements. A crawlspace that will be accessed regularly for HVAC maintenance, plumbing inspections, or pest monitoring benefits from a thicker, more durable barrier that tolerates foot traffic without damage. A crawlspace with minimal access needs may perform adequately with a lighter-weight product, provided seam integrity is maintained. In all cases, the barrier material should be specifically rated for below-grade or crawlspace use — generic construction sheeting may not meet the permeance or durability requirements for long-term ground moisture control.

What Are the Seam Tape Overlap Requirements for Effective Moisture Blocking?

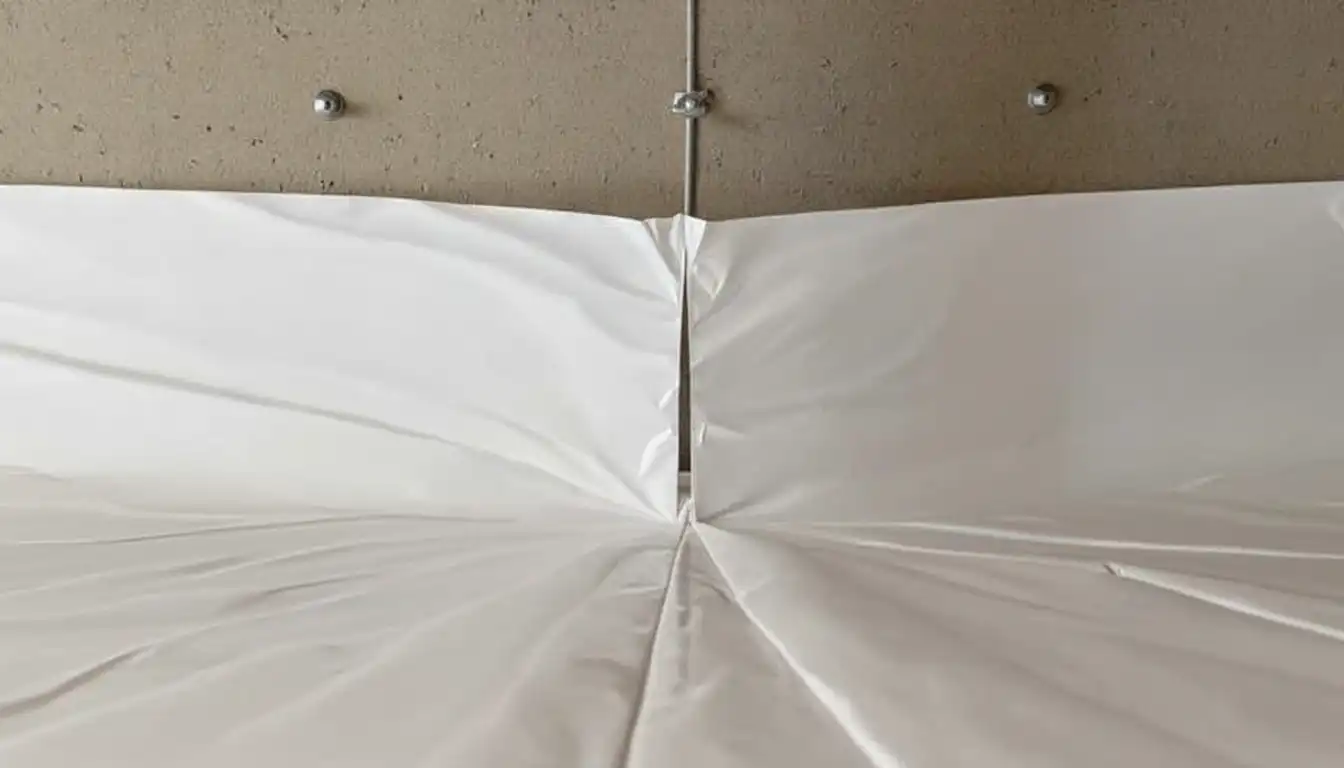

Seam tape overlap is the most overlooked detail in vapor barrier installation, and unsealed seams are the most common failure point in crawlspace ground covers. Most crawlspaces are wider than a single roll of polyethylene sheeting, so multiple sheets must be laid side by side with overlapping edges. The minimum seam overlap recommended by building codes is 6 inches, but industry best practice and most manufacturer specifications call for 12 inches of overlap. The overlap alone, however, does not create a moisture seal — the overlapping layers must be bonded together with polyethylene-compatible seam tape to prevent ground moisture from passing through the gap between sheets.

Unsealed overlaps allow moisture to wick upward through capillary action between the two sheet layers. When two sheets of polyethylene lie flat against each other without being bonded, the narrow gap between them acts as a capillary channel. Soil moisture migrates laterally into the overlap zone and then evaporates from the exposed edge into the crawlspace air above. A 6-inch unsealed overlap reduces ground moisture transmission compared to fully exposed soil, but the reduction is far less than what a properly taped seam achieves. Seam tape eliminates the capillary pathway by bonding the two sheets into a continuous moisture barrier at the overlap.

The type of seam tape matters as much as the overlap width. Polyethylene-compatible seam tape is specifically formulated to bond to polyethylene surfaces and maintain adhesion in the cool, humid conditions found in crawlspaces. General-purpose duct tape, packing tape, and other adhesive products lose adhesion within months in crawlspace environments because the adhesive degrades in sustained humidity. Purpose-built seam tapes use acrylic or butyl adhesives that maintain their bond in temperatures from below freezing to over 100 degrees and in relative humidity from 30 to 100 percent. Using the wrong tape is functionally equivalent to leaving the seam unsealed.

Wall termination sealing is equally important to seam overlap quality. Where the vapor barrier meets the foundation wall, the edge must be sealed to prevent ground moisture from migrating around the barrier perimeter. Standard practice is to extend the barrier at least 6 inches up the foundation wall and secure it with mechanical fasteners — concrete screws or masonry pins — combined with sealant or adhesive along the top edge. An unsealed wall termination allows soil moisture to evaporate from the strip of exposed ground between the barrier edge and the wall, creating a perimeter moisture source that can be significant in crawlspaces with high water tables.

Pier and penetration sealing requires cutting the barrier to fit around obstructions without leaving gaps. Every crawlspace has structural piers, support posts, plumbing pipes, and other penetrations that interrupt the barrier surface. Each penetration must be cut to fit snugly and sealed with seam tape or compatible adhesive to maintain continuous coverage. Leaving unsealed gaps around piers — a common shortcut during installation — creates concentrated moisture pathways directly at the structural elements most vulnerable to moisture damage.

How Is a Crawlspace Vapor Barrier Installed Step by Step?

Proper installation begins with preparing the crawlspace floor surface to protect the barrier from puncture damage. The soil surface should be cleared of sharp rocks, construction debris, old insulation, and any protruding objects that could puncture the polyethylene sheeting. Large rocks and debris are removed entirely, and the soil is raked or leveled to create a reasonably smooth surface. In crawlspaces with very rough or rocky soil, some installers lay a thin layer of sand over the cleared surface to provide additional puncture protection beneath the barrier. This preparation step directly affects the barrier's long-term integrity — a punctured barrier allows ground moisture through at the puncture point.

The polyethylene sheeting is rolled out across the prepared floor, starting from the wall farthest from the crawlspace access point. Working from the back of the crawlspace forward prevents installers from crawling over already-placed material and reduces the risk of displacement or damage during the installation process. Each sheet is positioned to extend up the foundation wall by at least 6 inches, and adjacent sheets are overlapped by the specified amount — 6 inches minimum, 12 inches recommended. The barrier should lay flat against the soil without large air pockets or bunched material that could shift over time.

All seam overlaps are sealed with polyethylene-compatible seam tape once the sheets are positioned. The tape is applied along the full length of every overlap, pressing firmly to ensure continuous adhesion between the two polyethylene surfaces. Both surfaces should be clean and dry when the tape is applied — dust, moisture, or soil on the polyethylene surface reduces tape adhesion. In crawlspaces where the installation occurs during humid conditions, wiping the seam area with a dry cloth before taping improves bond quality.

Wall edges are secured with mechanical fasteners and sealed with adhesive or sealant. The polyethylene is pressed against the foundation wall, and concrete screws, masonry pins, or termination bars are driven through the material into the wall at regular intervals — typically every 12 to 18 inches. Sealant is applied along the top edge of the barrier where it meets the wall to create a continuous bond that prevents moisture from migrating behind the barrier. The fasteners hold the barrier in position while the sealant provides the moisture seal.

Penetrations are sealed individually by cutting the barrier to fit around each obstruction. At pier bases, the barrier is cut in a star or cross pattern, pulled up around the pier, and sealed to the pier surface with seam tape or compatible adhesive. Plumbing pipes receive the same treatment — the barrier is cut to fit snugly around the pipe diameter and sealed to prevent any exposed soil at the penetration. The goal at every penetration is zero exposed soil between the barrier and the obstruction, creating a continuous ground cover with no gaps in the moisture barrier.

What Are the Limitations of a Standalone Vapor Barrier in Humid Midwest Climates?

A standalone vapor barrier controls ground moisture but leaves other moisture pathways open, which limits its effectiveness in climates where multiple humidity sources are active simultaneously. In Kansas City and Des Moines, summer outdoor relative humidity regularly reaches 75 to 85 percent. In a vented crawlspace, that humid outdoor air enters freely through foundation vents and becomes the dominant moisture source during warm months. A vapor barrier on the ground does nothing to control this air-source moisture because the humidity is entering through the vents, not through the soil. The crawlspace relative humidity remains elevated despite the ground being covered.

The 60 percent relative humidity threshold for mold growth is difficult to maintain with ground moisture control alone. Mold requires sustained humidity above approximately 60 percent to colonize wood surfaces. In a vented crawlspace during a Midwest summer, outdoor air at 80 percent relative humidity enters the crawlspace and contacts cool foundation walls and floor joists. As that air cools below its dew point, relative humidity rises above 60 percent even if the ground is completely covered by a vapor barrier. The moisture is already in the air before it enters the crawlspace — the ground cover cannot remove it. This is why building science research consistently shows that sealed crawlspaces outperform vented crawlspaces with vapor barriers for humidity control.

A vapor barrier does not provide thermal benefits or energy savings on its own. The polyethylene sheeting has negligible insulating value. It does not reduce heat transfer through the floor assembly, does not prevent cold air from entering through vents in winter, and does not change the crawlspace air temperature. The energy savings documented in crawlspace improvement research — the DOE's 10 to 30 percent reduction in heating and cooling costs — come from sealing, insulating, and conditioning the crawlspace, not from ground covers alone. A vapor barrier contributes to moisture control within a comprehensive system but does not independently deliver the thermal performance that drives energy savings.

Condensation on the barrier surface can create standing water that attracts pests and creates its own moisture problem. In summer, warm humid air entering a vented crawlspace contacts the cooler vapor barrier surface and can condense on top of the polyethylene. This creates puddles of condensation that sit on the barrier rather than draining into the soil below. Standing water on the barrier attracts mosquitoes, provides a water source for rodents and insects, and creates localized high-humidity conditions near the barrier surface. In a sealed crawlspace with active dehumidification, condensation on the barrier is controlled because the air entering the space is managed. In a vented crawlspace with only a vapor barrier, this condensation cycle repeats through every humid season.

Understanding these limitations helps homeowners make informed decisions about whether a standalone vapor barrier meets their needs. A vapor barrier is a valuable component of crawlspace moisture management, but it is one component, not a complete solution. The encapsulation versus vapor barrier comparison details the specific conditions where each approach is appropriate and where the limitations of a standalone barrier make a more comprehensive system the better choice.

When Does a Vapor Barrier Make Sense as a Standalone Treatment?

A standalone vapor barrier is a reasonable approach when ground moisture is the primary humidity source and other moisture pathways are already controlled or minimal. Not every crawlspace requires full encapsulation. In homes where the crawlspace stays relatively dry, where foundation vents are not introducing problematic amounts of humid air, and where the primary concern is reducing soil evaporation to protect structural wood from chronic moisture exposure, a properly installed vapor barrier addresses the dominant moisture source without the additional complexity and investment of a complete sealed system.

Crawlspaces in drier climate zones or in well-drained soils with low water tables may perform well with a vapor barrier alone. Ground moisture transmission rates vary significantly based on soil type, drainage, and groundwater depth. A crawlspace built on well-drained sandy soil with a deep water table generates less ground moisture than one built on clay soil with a high water table. In these lower-moisture conditions, a vapor barrier may reduce crawlspace humidity enough to stay below the 60 percent threshold without additional moisture controls. However, in the clay-heavy soils common to Kansas City and central Iowa, ground moisture levels tend to be higher, making additional controls more frequently necessary.

A vapor barrier is often the first step in a phased approach to crawlspace improvement. Homeowners who want to address crawlspace moisture incrementally can start with a quality vapor barrier and monitor the results. If ground moisture was the primary issue, humidity levels will drop measurably after installation. If humidity remains elevated despite the ground being covered, that indicates air-source moisture through vents or bulk water intrusion through walls — problems that require sealing vents, improving drainage, or adding dehumidification. This phased approach allows homeowners to invest in solutions matched to their actual conditions rather than assuming the most comprehensive system is always necessary.

Code compliance is another practical reason homeowners install standalone vapor barriers. The IRC requires a ground cover in all crawlspaces with earth floors, and a 6-mil polyethylene vapor barrier meets this code requirement. Homes that are being sold, refinanced, or inspected may need a code-compliant ground cover regardless of whether additional moisture management is planned. Installing a quality vapor barrier — ideally 10 to 20-mil reinforced polyethylene with sealed seams — satisfies the code requirement while providing meaningful ground moisture reduction.

When combined with other interventions, a vapor barrier becomes the foundation layer of a more complete system. In a full crawlspace encapsulation, the vapor barrier serves as the ground moisture control component while sealed vents eliminate air-source moisture, wall insulation reduces thermal loss, and a dehumidifier maintains target humidity levels. The vapor barrier's role in an encapsulated system is the same as in a standalone installation — blocking ground moisture transmission — but the system around it addresses the moisture pathways that a standalone barrier cannot. Whether a homeowner starts with a vapor barrier alone or installs it as part of a comprehensive system, the barrier itself performs the same function: separating wet soil from crawlspace air.

Frequently Asked Questions About Crawlspace Vapor Barriers
